ATTACHMENTS FOR DEMOLITION & RECYCLING

REAL POWERHOUSES FOR YOUR MACHINES

Discover
A global network with local expertise and specialist
Full control over production with 18 of our own factories
Parts for every machine, model and earthmoving industry

ABOUT OUR ATTACHMENTS

ITR demolition equipment was created to offer a total solution. The product line is completely designed, manufactured and assembled in Italy. The use of these products makes it possible to demolish concrete, steel, brick and wood structures, to cut the demolished material and to separate the reinforcing steel from the concrete to facilitate its transport and recycling.

  • The equipment is made of STRNX steel – highly elastic and resilient to absorb the stress generated by the hydraulic cylinder – and HARDOX steel, highly wear-resistant and able to protect all the parts in direct contact with the material being demolished.
  • The innovative PRV (Pressure Relief Valve) system protects the equipment from high pressure peaks by draining the excess oil directly into the tank.

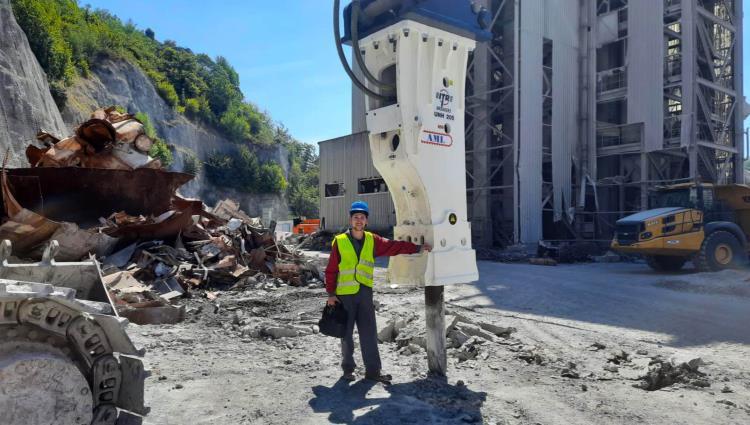

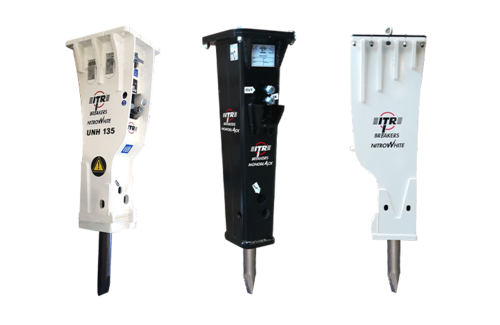

Hydraulic hammers

The range of hammers available at ITR is from 70 kg to 10 tons, so a suitable hammer can always be found.

Read more

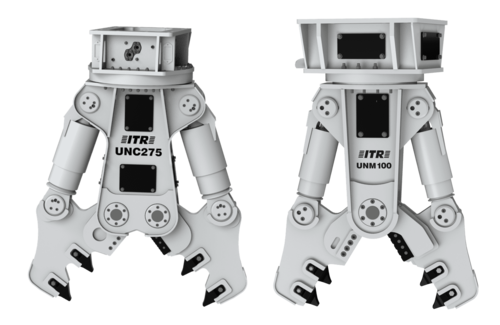

Pulveriser

The innovative PRV (Pressure Relief Valve) protects the crusher against peaks of extremely high pressure, which increases the service life and makes working safer.

Read more

Pulverisers

Equipped with the PRV (Pressure Relief Valve) as standard, which protects the scissors against high pressure.

Read more

Scrap shears

The body of Hardox eng Strenx makes the scrap shears of ITR Benelux durable and reliable.

Read more

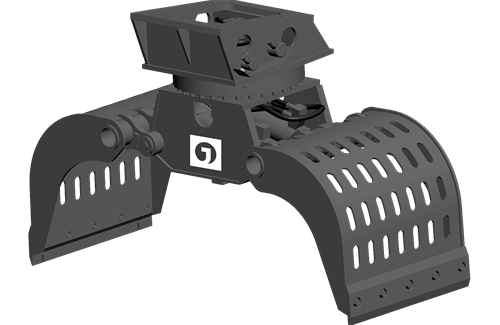

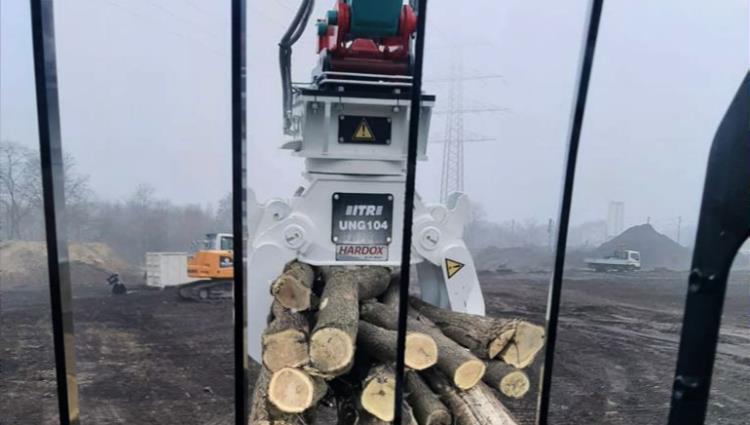

Demolition and sorting grabs

Read more

ABOUT OUR ATTACHMENTS

ITR demolition equipment was created to offer a total solution. The product line is completely designed, manufactured and assembled in Italy. The use of these products makes it possible to demolish concrete, steel, brick and wood structures, to cut the demolished material and to separate the reinforcing steel from the concrete to facilitate its transport and recycling.

  • The equipment is made of STRNX steel – highly elastic and resilient to absorb the stress generated by the hydraulic cylinder – and HARDOX steel, highly wear-resistant and able to protect all the parts in direct contact with the material being demolished.
  • The innovative PRV (Pressure Relief Valve) system protects the equipment from high pressure peaks by draining the excess oil directly into the tank.

Technical information

Technical Data UNC115 UNC140 UNC190 UNC220 UNC275 UNC380 UNC480 UNC580 UNC790 UNC1195
Opening (A) 600 mm 710 mm 825 mm 920 mm 1100 mm 1350 mm 1500 mm 1650 mm 1830 mm 2300 mm
Length (B) 1700 mm 2010 mm 2180 mm 2300 mm 2700 mm 2800 mm 2850 mm 3000 mm 3200 mm 3820 mm
Width (C) 460 mm 480 mm 665 mm 740 mm 880 mm 1034 mm 1055 mm 1080 mm 1185 mm 1410 mm
Excavator Weight 12/16 ton 16/22 ton 22/30 ton 30/40 ton 35/50 ton 36/49 ton 50/65 ton 60/80 ton 80/100 ton 90/150 ton
Equipment Weight 1150 Kg 1400 Kg 1900 Kg 2200 Kg 2750 Kg 3800 Kg 4800 Kg 5800 Kg 7900 Kg 11950 Kg
Max Pressure 300 bar 310 bar 320 bar 320 bar 320 bar 340 bar 340 bar 340 bar 340 bar 340 bar
Oil Max Capacity
(L/min)		 200/220 220/240 240/280 300/320 300/340 300/380 350/400 380/450 400/500 450/700
Rotation Oil Pressure 60 bar 60 bar 60 bar 60 bar 60 bar 60 bar 100 bar 100 bar 100 bar 100 bar
Rotation Oil Capacity
(L/min)		 30 30 30 30 40 40 60 60 60 70
Technical Data UNC115 UNC140 UNC190 UNC220 UNC275 UNC380 UNC480 UNC580 UNC790 UNC1195
Opening (A) 600 mm 710 mm 825 mm 920 mm 1100 mm 1350 mm 1500 mm 1650 mm 1830 mm 2300 mm
Length (B) 1700 mm 2010 mm 2180 mm 2300 mm 2700 mm 2800 mm 2850 mm 3000 mm 3200 mm 3820 mm
Width (C) 460 mm 480 mm 665 mm 740 mm 880 mm 1034 mm 1055 mm 1080 mm 1185 mm 1410 mm
Excavator Weight 12/16 ton 16/22 ton 22/30 ton 30/40 ton 35/50 ton 36/49 ton 50/65 ton 60/80 ton 80/100 ton 90/150 ton
Equipment Weight 1150 Kg 1400 Kg 1900 Kg 2200 Kg 2750 Kg 3800 Kg 4800 Kg 5800 Kg 7900 Kg 11950 Kg
Max Pressure 300 bar 310 bar 320 bar 320 bar 320 bar 340 bar 340 bar 340 bar 340 bar 340 bar
Oil Max Capacity
(L/min)		 200/220 220/240 240/280 300/320 300/340 300/380 350/400 380/450 400/500 450/700
Rotation Oil Pressure 60 bar 60 bar 60 bar 60 bar 60 bar 60 bar 100 bar 100 bar 100 bar 100 bar
Rotation Oil Capacity
(L/min)		 30 30 30 30 40 40 60 60 60 70

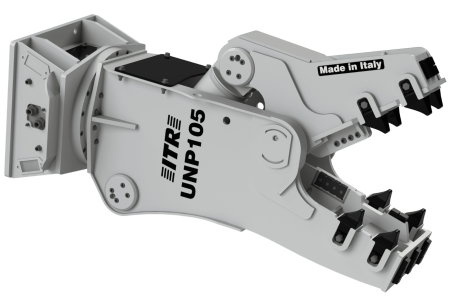

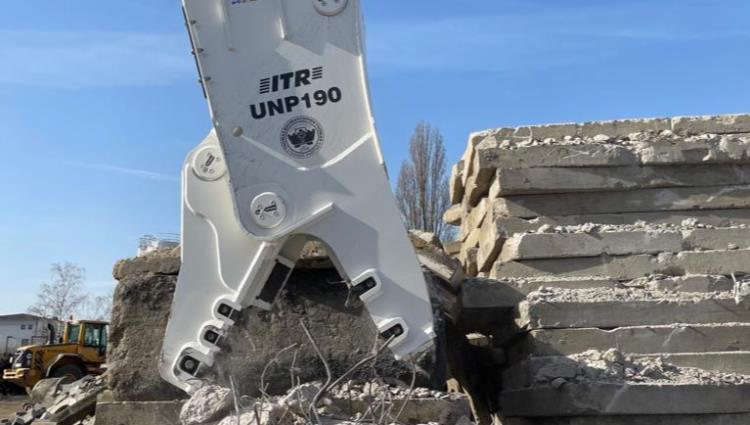

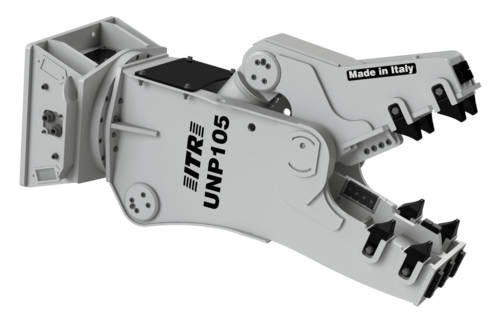

Technical Data UNP60 UNP105 UNP161 UNP190 UNP258 UNP304 UNP394 UNP600 UNP780 UNP995
Opening (A) 520 mm 630 mm 780 mm 820 mm 910 mm 1040 mm 1130 mm 1280 mm 1350 mm 1720 mm
Length (B) 1410 mm 1900 mm 2330 mm 2390 mm 2510 mm 2660 mm 2850 mm 3230 mm 3400 mm 3800 mm
Width (C) 340 mm 380 mm 460 mm 480 mm 480 mm 510 mm 550 mm 660 mm 620 mm 650 mm
Excavator Weight 7/12 ton 9/15 ton 15/20 ton 18/26 ton 24/32 ton 30/40 ton 38/55 ton 50/80 ton 70/90 ton 90/120 ton
Equipment Weight 600 Kg 1050 Kg 1610 Kg 1900 Kg 2580 Kg 3040 Kg 3940 Kg 6000 Kg 7800 Kg 9950 Kg
Max Pressure 250 bar 310 bar 320 bar 320 bar 320 bar 320 bar 320 bar 320 bar 330 bar 340 bar
Oil Max Capacity
(L/min)		 80/100 180/220 180/220 200/240 250/300 300/350 300/350 300/350 400/500 500/600
Rotation Oil Pressure 60 bar 60 bar 60 bar 60 bar 60 bar 60 bar 60 bar 100 bar 100 bar 100 bar
Rotation Oil Capacity
(L/min)		 10 30 30 30 30 30 30 60 60 60

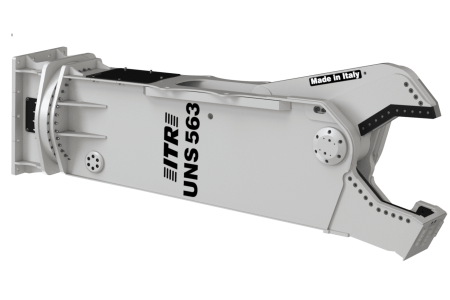

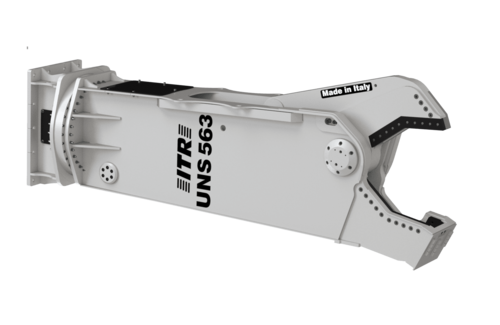

Technical Data UNS64 UNS125 UNS203 UNS253 UNS320 UNS391 UNS563 UNS690 UNS780 UNS995 UNS1150
Opening (A) 365 mm 440 mm 470 mm 550 mm 590 mm 680 mm 800 mm 850 mm 880 mm 920 mm 950 mm
Length (B) 1880 mm 2450 mm 3040 mm 3060 mm 3520 mm 3660 mm 4100 mm 4700 mm 4800 mm 5000 mm 5300 mm
Width (C) 240 mm 400 mm 500 mm 510 mm 590 mm 600 mm 690 mm 800 mm 830 mm 900 mm 950 mm
Excavator Weight
at bucket place		 7/12 ton 12/18 ton 20/28 ton 26/34 ton 34/40 ton 40/50 ton 50/70 ton 70/100 ton 80/110 ton 90/120 ton 100/130 ton
Excavator Weight
at boom place		 4/7 ton 7/10 ton 14/18 ton 16/22 ton 22/30 ton 26/35 ton 30/45 ton 45/60 ton 50/70 ton 70/90 ton 90/110 ton
Equipment Weight 640 Kg 1250 Kg 2030 Kg 2530 Kg 3200 Kg 3910 Kg 5630 Kg 6900 Kg 7800 Kg 9950 Kg 11500 Kg
Max Pressure 250 bar 310 bar 340 bar 340 bar 340 bar 340 bar 340 bar 340 bar 340 bar 340 bar 340 bar
Oil Max Capacity
(L/min)		 80/100 150/220 200/220 200/240 240/300 300/350 350/450 350/400 400/500 500/800 700/900
Rotation Oil Pressure 60 bar 140 bar 140 bar 140 bar 140 bar 140 bar 140 bar 140 bar 140 bar 140 bar 140 bar
Rotation Oil Capacity
(L/min)		 20 30 30 30 30 30 60 60 60 60 60
Hydraulic Rotation 360 360 360 360 360 360 360 360 360 360 360
